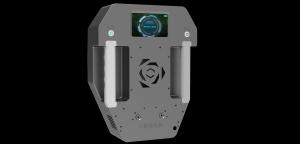

3km Range Backpack Drone Jammer 300MHz-6000MHz Detection High Precision

Model Number : JDY-300T

Certification : Design Patent Certificate,Computer Software Copyright Registration Certificate,Utility Model Patent Certificate,Testing Report of Lightning Protection Products Testing Center of Shanghai Lightning Protection Center, etc.

Place of Origin : China

MOQ : 1

Price : ＄16750

Payment Terms : T/T,L/C,D/A,D/P,Western Union,MoneyGram

Supply Ability : 200 per month

Delivery Time : 30 days

Packaging Details : Flight Case

Product Name : Portable Uav Detection and Jamming Shield Shie

Core Technology : Ultra-High-Speed Frequency Sweeping

Detection Frequency Range : 300MHz~6000MHz

Key Detection Bands : 2.4G/5.8g/900MHz/1.1g/1.4GHz/5.2g (Customizable)

Detection Distance : 1~3km (Depends on Local Electromagnetic Environmen

Detection Angle : 360° Horizontal, -90°~+90° Pitch

Positioning Accuracy : ≤5m (Protocol Analysis)

Jamming Bands : 800MHz/900MHz/1.4GHz/1.6GHz/2.4GHz/5.8GHz

Jamming Distance : 1~2km (Urban Environment)

Jamming Angle : 90° Horizontal, 20°~40° Vertical

Jamming Response Time : ≤2.5s; ≤2s (Partial Versions)

Jamming Modes : Repel, Forced Landing, Navigation Interference

Power Supply : Built-in Lithium Battery (24V/29.2V/29.4V)

Weight : ≤4kg (Partial); ≤5kg; ≤6kg

Operating Temperature : -20ºC~50ºC
